Getting Started with Sentience Studio

Learn how to access Studio, view your first trace, and navigate the interface.

Accessing Sentience Studio

Plan Requirements

Sentience Studio is available on Builder tier and above:

• ✅ Builder - Full Studio access
• ✅ Pro - Full Studio access
• ✅ Teams - Full Studio access
• ✅ Enterprise - Full Studio access
• ❌ Hobby - Upgrade required

Need to upgrade? Visit your Dashboard and click "Upgrade Plan" to access Studio.

Accessing Studio

1. Sign in to your Sentience account
2. Click Studio in the navigation menu
3. You'll see the Trace List showing all your agent runs

After signing in, access Studio from the main navigation bar. Press Cmd + K (Mac) or Ctrl + K (Windows) to switch between Dashboard and Studio.

Your First Trace

What is a Trace?

A trace is a complete record of an agent execution. It contains:

• Every step the agent took
• Screenshots at each decision point
• LLM responses and reasoning
• Action executions and results
• Verification outcomes
• Performance metrics

Think of it as a "recording" of your agent's entire run that you can replay and inspect.

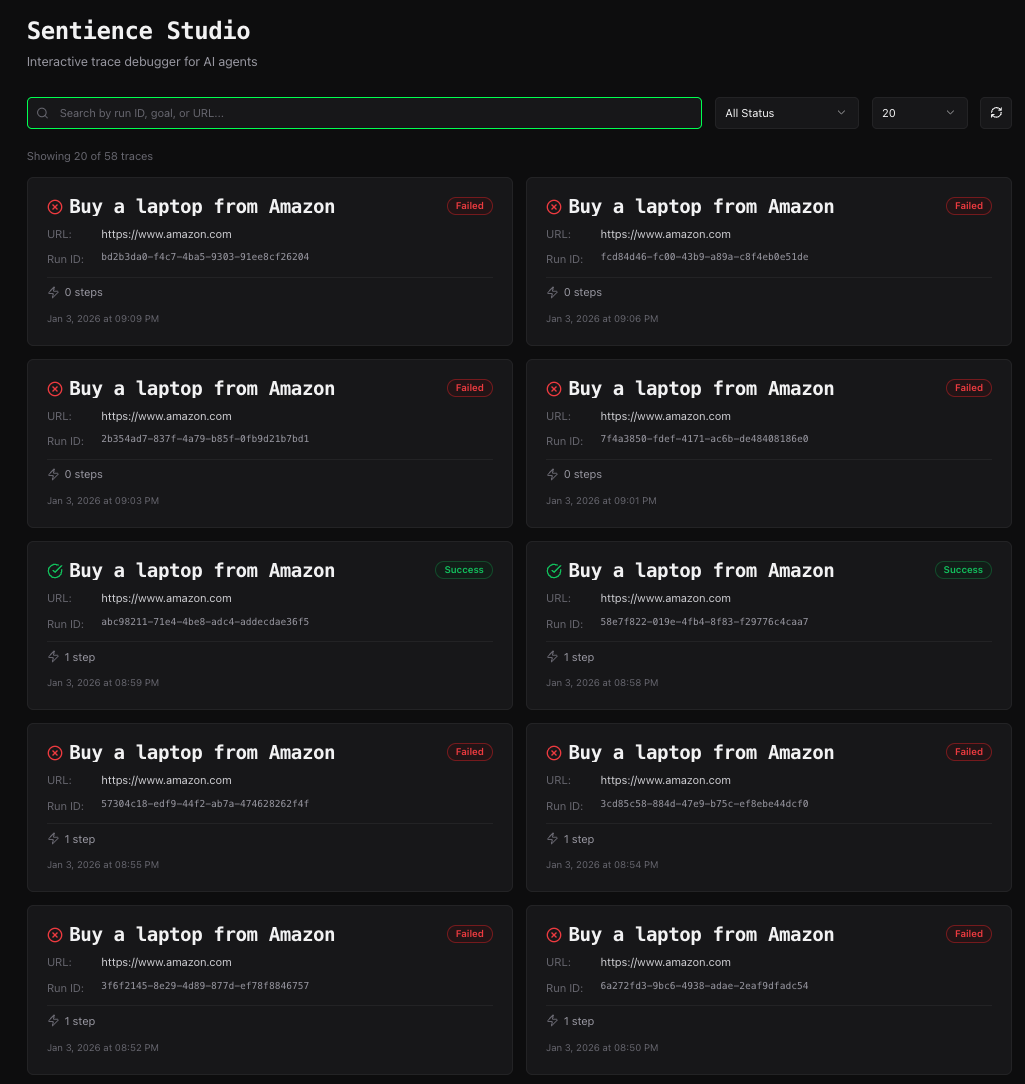

Viewing the Trace List

When you first open Studio, you'll see the Trace List:

Each trace card shows:

• Goal - What the agent was trying to accomplish
• Status Badge - Success (green), Partial (yellow), or Failed (red)
• URL - The starting website
• Run ID - Unique identifier for this execution
• Stats - Number of steps and duration
• Timestamp - When the run occurred

Opening a Trace

Click any trace card to open the Trace Debugger:

The Trace Debugger is where you'll spend most of your time analyzing agent behavior.

Understanding the Interface

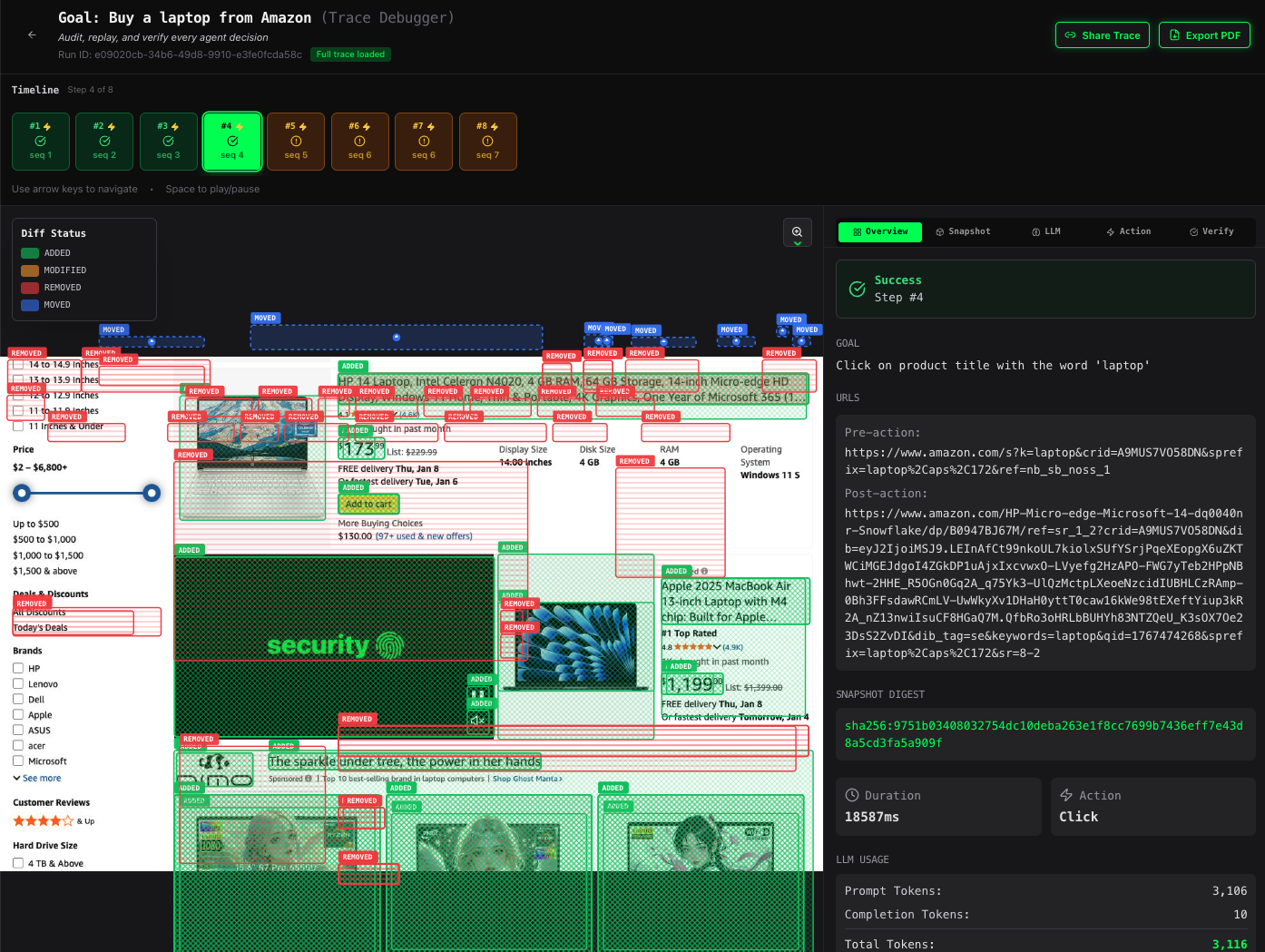

Trace Debugger Layout

The Trace Debugger has three main sections:

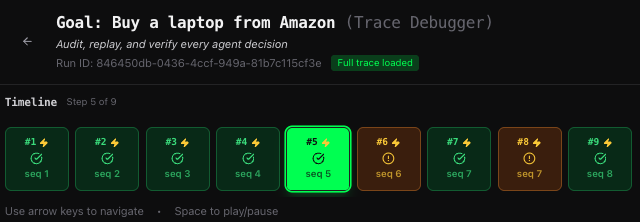

1. Timeline (Top)

Shows all steps in the execution as a horizontal timeline:

• Green bars = Successful steps
• Yellow bars = Partial success (action succeeded but verification failed)
• Red bars = Failed steps
• Click any step to jump to it

2. Screenshot Viewer (Left - 65%)

Displays the webpage screenshot for the current step:

• See exactly what the agent "saw"
• Visual overlays show element interactions
• Toggle different visualization modes

3. Detail Panel (Right - 35%)

Shows detailed information about the current step:

• Step goal and action
• LLM response
• Execution details
• Verification results
• Performance metrics

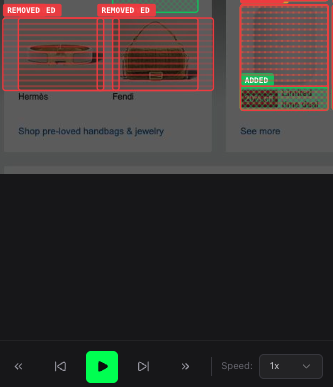

Navigation Controls

At the bottom of the screen, you'll find playback controls:

• Previous/Next - Step backward or forward
• Play/Pause - Auto-play through steps
• Speed Control - Adjust playback speed (0.5x, 1x, 2x, 4x)
• Step Counter - Shows current step number

Keyboard Shortcuts

Speed up your workflow with keyboard shortcuts:

Key	Action
Space	Play/Pause
←	Previous step
→	Next step
Home	Jump to first step
End	Jump to last step

Your First Analysis

Let's walk through analyzing a simple trace:

Step 1: Select a Trace

From the Trace List, click a trace with a Failed or Partial status badge.

Step 2: Find the Failure Point

Look at the timeline - red or yellow bars indicate problems and the lightning icon shows agent actions

Click the failed step to inspect it.

Step 3: Review the Screenshot

Look at the screenshot viewer:

• What was on the page at this moment?
• Was the element the agent tried to interact with visible?
• Were there any popups or overlays blocking interaction?

Step 4: Check the Detail Panel

Scroll through the detail panel:

• Goal - What was the agent trying to do?
• Action - What action did it attempt?
• Execution - Did the action succeed or fail?
• Verification - Why did verification fail?

Step 5: Understand the Failure

Common failure patterns:

• Element not found - The agent couldn't locate the target element
• Action succeeded, verification failed - The action executed but didn't produce expected results
• Timeout - The page took too long to respond
• Navigation error - The page navigated unexpectedly

Visualization Modes

Studio provides three visualization overlays to help you understand agent behavior:

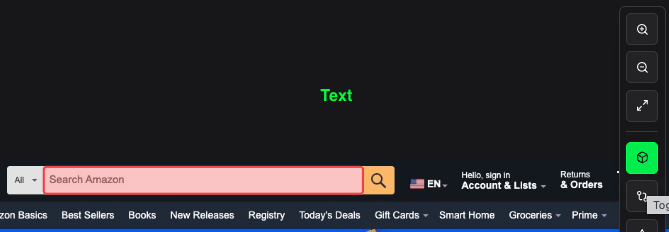

Bounding Box Overlay

Shows which elements the agent interacted with:

• Green boxes = Successfully interacted elements
• Red boxes = Failed interactions
• Click the Box icon to toggle

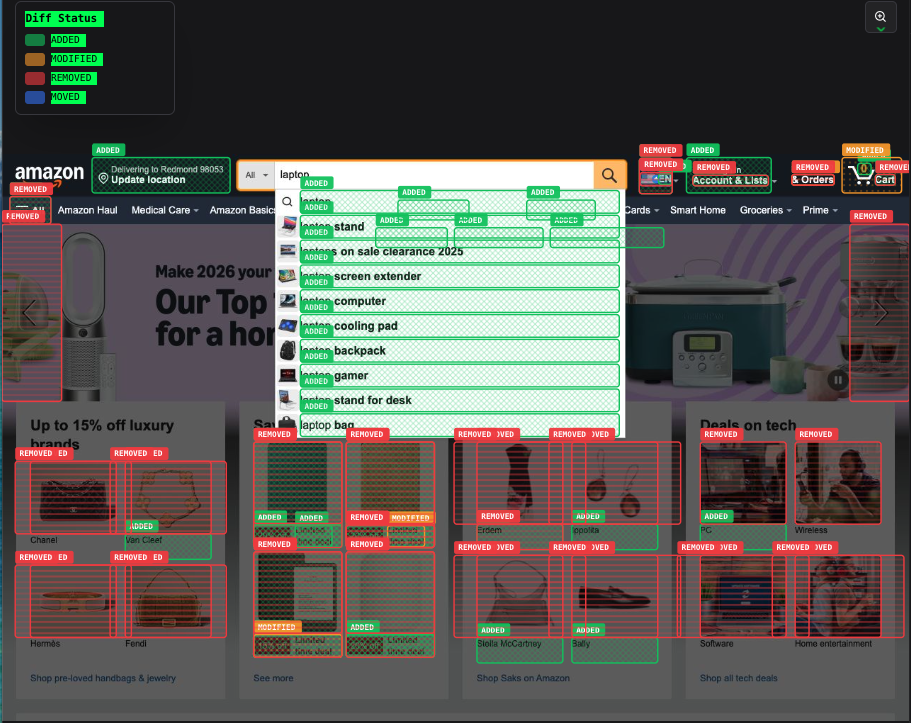

Diff Overlay

Highlights what changed between steps:

• Green = Elements added
• Red = Elements removed
• Yellow = Elements modified
• Click the Diff icon to toggle

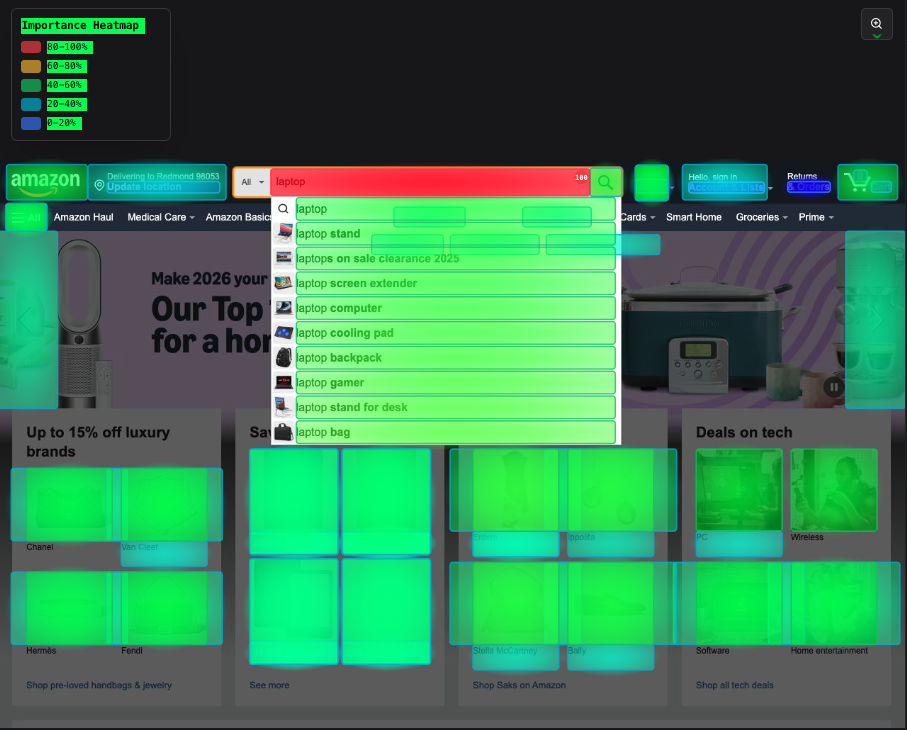

Heatmap Overlay

Shows element importance scores:

• Bright colors = High importance (agent focused here)
• Dim colors = Low importance
• Click the Heatmap icon to toggle

Next Steps

Now that you understand the basics:

• Deep Dive: Learn about the Trace Debugger interface →
• Analysis: Master the Detail Panel →
• Enable Tracing: Set up tracing in your code →

Quick Tips

• Use keyboard shortcuts to navigate faster
• Toggle overlays to see different aspects of the page
• Focus on failed or partial steps when debugging
• Compare successful runs with failed runs to spot differences
